DLA-N7

JVC DLA-NX7 D-ILA projector is wrapped in a whole new design, which is packed with the latest projection features. For instance with the new 0.69-inch native 4K D-ILA device, the projector can produce high-definition native 4K resolution (4096 x 2160) images from its all-glass 65 mm diameter lens system. HDR10 content can be projected at optimum quality with Auto Tone Mapping function, and the new Frame Adapt HDR function, which analyzes HDR10 content frame-by-frame and automatically performs frame adjustment for optimal image projection. Combining brightness of 1,900 lm, dynamic contrast ratio of 800,000:1, and 18-bit equivalent gamma accuracy for smooth gradation, the projector reproduces life-like images close to reality as we perceive with our eyes. Renewed Clear Motion Drive together with Motion Enhance, which optimizes the D-ILA driving device according to image movement, significantly reduce blur compared to other projectors.

SPECIFICATIONS.

Device : 0.69-inch Native 4K DILA Device (4096x2160) x3
Resolution : 4096 x 2160
Lens shift function :  +/-80% vertical & +/-34% horizontal, motorised in 16:9 aspect mode
Light source lamp : NSH 265 W
Lamp life : Approx. 4500 hours in Low mode
Brightness : 1,900 lm
Contrast Ratio Native : 80,000:1, Dynamic: 800,000:1
Video format Digita l: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24

PC input signal
HDMI VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+

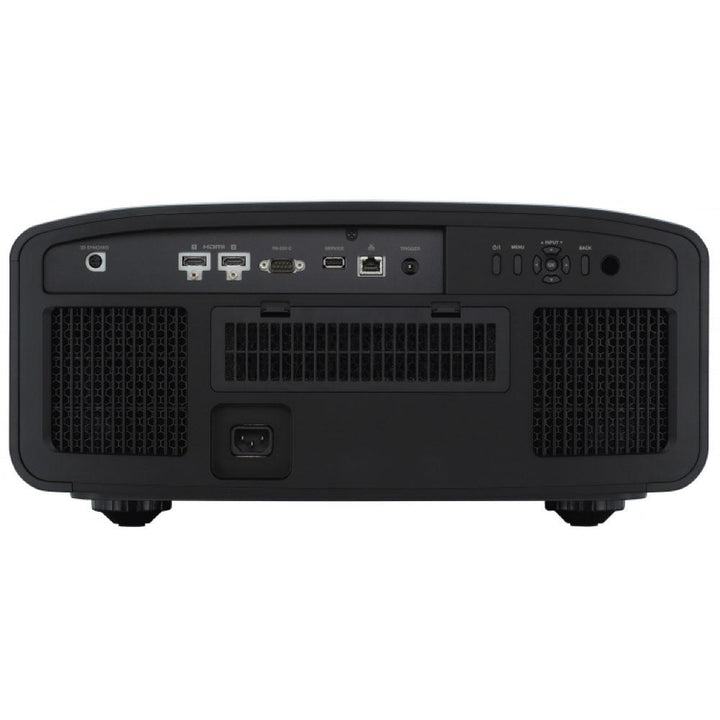

Control terminals
LAN : 1 (RJ-45)
RS232C : 1 (D-sub 9-pin)

Service terminal
SERVICE :  1 (USB Type A) (for firmware update)

General
Power requirement : AC100V-240V, 50/60Hz
Dimensions: W x H x D, (mm) : 500 x 234 x 495
Weight, (kg) : 19.8
