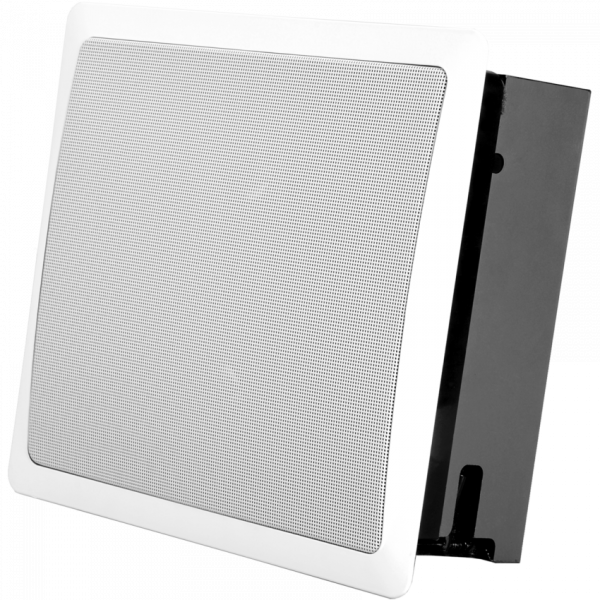

UIW RSS II
- Key drivers on the front and rear panel maximize the sound stage by radiating sound in two directions
- Two complete driver/radiator/tweeter full-range systems in each speaker create dynamic sound output
- Non-resonant sealed medite enclosures deliver tight bass and uncolored midrange in every installation
- Part of the Reference Architectural Series bringing spectacular sound and performance to every room
More Engineering Inside for Better Sound Outside
Each RSS II bipolar surround speaker contains two complete 3-way full-range systems. The curved angle bipolar array skillfully reproduces movies and music scores by improving sound dispersion and optimizing performance. Each speaker in the Reference Architectural Series is specifically engineered for use in home theater systems of the highest quality.
Key Features
Curved Angle Bipolar Array
Amazing sound dispersion and double-direction radiation deliver an enveloping surround performance, immersing listeners in a 360-degree sound stage.
Easily Installed High-End Performance
Six rotating dogleg clamps and beefy wood screws provide secure, non-resonant mounting for audiophile-quality performance free of vibrations and buzzes.
Tight, Detailed and Uncolored Audio
Sealed medite enclosures are inert and free of vibrations for tighter, more detailed audio reproduction.
Minimal Visibility with Maximum Sound
Reference Architectural Series speakers bring high performance sound into every room of your house while being intelligently engineered to be nearly invisible.
SPECIFICATIONS.
ACCESSORIES
Included Accessories
(1) Wall Mounting Template
(1) Paint Mask
(1) Paintable Grille
(1) Self Adhering Foam Gasket
SHIPPING CARTONS
Carton 1: 14″ (35.56 cm) h x 13.25″ (33.66 cm) w x 10.25″ (26.04 cm) d – 14 lbs (6.35 kg)
LOUDSPEAKER
Qty Included: 1
Driver Complement
(2) 1″ (2.54 cm) d (Round) Pure Aluminum Dome – Tweeter
(2) 4.5″ (11.43 cm) d (Round) High-Definition Cast-Basket – Mid/Woofer
(2) 4.5″ (11.43 cm) d (Round) Pressure Coupled – Bass Radiator
Weight: 12.5 lbs (5.67 kg)
Grille Dimensions: 12.75″ (32.39 cm) h x 11″ (27.94 cm) w
IN-WALL MOUNT
Shape: Rectangle
Dimensions: 11.63″ (29.54 cm) h x 9.88″ (25.1 cm) w
IN-CEILING MOUNT
Shape: Rectangle
Dimensions: 11.63″ (29.54 cm) h x 9.88″ (25.1 cm) w
INPUTS
Audio Inputs
Speaker Inputs: (1) Pair of Heavy Duty, Spring Loaded –
AUDIO QUALITY
Total Frequency Response: 26 Hz ? 30,000 Hz
Nominal Impedance: 8 ohms
Max Sensitivity (1 watt @ 1 meter): 90 dB
CROSSOVER
A/V Receiver Crossover Settings: Small (100 Hz)
EXTERNAL AMPLIFIER
External Amplifier: No
